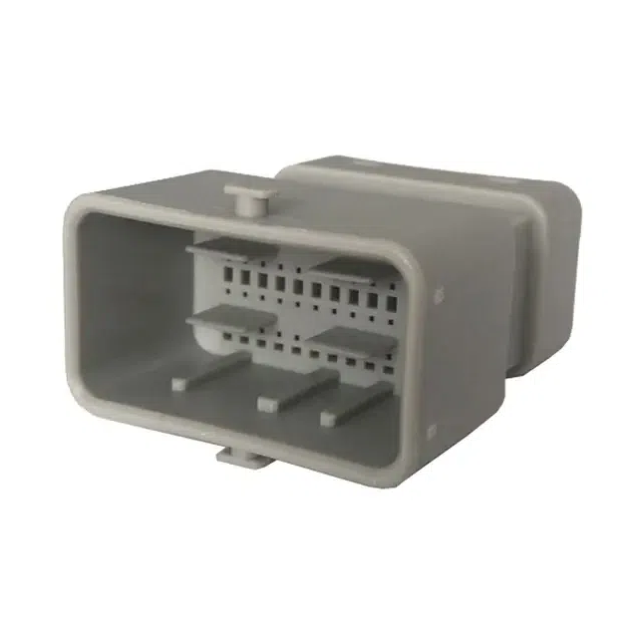

In the automotive industry, ensuring the reliability of critical components like the ECU (Electronic Control Unit) connector is vital for vehicle performance and safety. ECU connectors play a significant role in maintaining the connection between various electronic components within a vehicle. If these connectors fail, it can lead to system malfunctions or even total failure, potentially causing costly repairs and customer dissatisfaction. In this article, we will explore the common causes of ECU connector failure, how to design for reliability, the best installation practices, and how maintenance can prevent costly downtime. We will also explain how TONGSHENG, a trusted manufacturer in the automotive industry, can provide solutions that reduce ECU connector failure risks.
Understanding the causes behind ECU connector failure is the first step in mitigating potential risks. There are several factors that can contribute to the degradation of ECU connectors, and addressing them early on can help reduce the chances of system failures.
Corrosion of Contact Surfaces
One of the most common reasons for ECU connector failure is corrosion on the contact surfaces. Corrosion occurs when moisture and contaminants make their way into the connector, leading to a breakdown of the electrical connection. Over time, corrosion can increase the resistance between the contacts, causing overheating, signal loss, and ultimately connector failure.
Mechanical Stress from Poor Installation
Improper installation practices can introduce mechanical stress on the ECU connector, which can result in failure. For instance, connectors that are not properly aligned or secured can experience stress during operation, leading to damaged pins or broken housings. It is essential to ensure that the connectors are installed correctly and securely to prevent mechanical failure.
Connector Fatigue from Vibration
Vibration is another significant cause of ECU connector failure, particularly in vehicles where the components are subjected to continuous movement. Over time, the repeated motion can cause fatigue in the connector’s internal structure, leading to loosened connections or even broken connectors. This is especially true for connectors that are not designed to withstand high levels of vibration.
To reduce the risk of ECU connector failure, it is important to focus on robust and reliable connector design. At TONGSHENG, we emphasize the importance of incorporating various design features that can help enhance the durability and longevity of ECU connectors.
Locking Mechanisms to Prevent Connector Disengagement
Locking mechanisms ensure that the ECU connectors remain securely fastened to the system, even under harsh operating conditions. These mechanisms prevent accidental disconnections, which can be caused by vibrations or mechanical forces. By designing connectors with strong locking features, we help to enhance system stability and reduce the risk of failure.
Multi-Seal Protection Against Moisture
Moisture is a significant threat to the longevity of ECU connectors, especially in environments where the vehicle may be exposed to rain, snow, or high humidity. Multi-seal protection provides a barrier against moisture, preventing it from entering the connector and causing corrosion. This feature helps to preserve the electrical integrity of the connection, ensuring reliable performance throughout the vehicle’s lifespan.
Overmolded Cables to Relieve Strain
Overmolding is a technique where the cable is coated with a durable layer of plastic, providing additional strain relief. This design feature is crucial for preventing cable wear and tear, which can result from repeated movement or bending. By overmolding cables, we ensure that the connectors remain intact and the internal wiring is protected from external stress.
While the design of ECU connectors plays a significant role in their reliability, proper installation is just as crucial. Here are some best installation practices that can help reduce the risk of connector failure:
Avoid Cable Over-Bending
Excessive bending of cables can lead to internal wire damage, which may result in intermittent electrical connections or complete failure. It is essential to avoid sharp bends and to route the cables in a way that minimizes strain. Proper cable management and careful planning during installation can prevent over-bending and improve the overall durability of the connectors.
Proper Torque During Mounting
When installing ECU connectors, it is vital to apply the correct torque during mounting. Over-tightening or under-tightening can cause damage to the connector, leading to a poor connection or failure. Using the correct torque specifications ensures that the connector is securely attached without causing unnecessary stress on the components.
Use of Dummy Plugs for Unused Ports
Unused ECU connector ports should be sealed with dummy plugs to prevent dust, moisture, or contaminants from entering the system. This simple step can significantly extend the lifespan of the connector by keeping it free from foreign particles that may cause corrosion or poor connections.
Regular maintenance and monitoring are essential for detecting early signs of ECU connector failure before they lead to costly repairs. Here are some maintenance practices that can help identify potential problems and prevent connector failure:
Regular Inspection During Servicing
Routine inspections during vehicle servicing can help identify any signs of wear, corrosion, or damage on ECU connectors. This can be done visually, but more advanced methods such as using diagnostic tools to check for electrical continuity can provide a more thorough assessment. Early detection allows for timely repairs or replacements, preventing more severe damage down the road.
Use Diagnostic Tools for Early Failure Detection
Advanced diagnostic tools can provide real-time monitoring of the ECU connectors and help detect early signs of failure. These tools can detect issues like high resistance, poor connections, or even short circuits, allowing technicians to address the problem before it causes system malfunctions. Regular use of diagnostic equipment ensures the continued reliability of the system.
Replace Connectors Showing Wear or Discoloration
ECU connectors that show signs of wear or discoloration should be replaced promptly. Discoloration often indicates that the connector has been exposed to heat, moisture, or other damaging conditions, which can lead to failure. By replacing connectors showing early signs of damage, you can prevent further issues and ensure the vehicle’s electronic systems continue to function reliably.
Ensuring the reliability of ECU connectors is critical for preventing system failures and maintaining vehicle performance. By addressing common causes of failure, designing connectors for durability, following best installation practices, and implementing regular maintenance, the risks of ECU connector failure can be significantly reduced. At TONGSHENG, we offer high-quality automotive connectors designed to meet the rigorous demands of the industry. Our products help reduce downtime, lower maintenance costs, and increase customer satisfaction by providing reliable, long-lasting connections.
If you want to learn more about how TONGSHENG can provide the best ECU connectors for your automotive needs, contact us today! Our team is ready to assist you in finding the perfect solution for your vehicle’s electronic systems.
